50
km
Long-Lasting Battery
3
hr
Fast Charging
Anti-Theft
Rear Wheel Lock
Graceful Rides, Effortless Joy
Up to 50 km Range ｜ 3-Hour Fast Charging | Automatic Gear Shifting ｜ Low Step-Through Frame |
Quick-Release Basket ｜Self-Centering Steering System｜ Built-in Rear Wheel Lock
Quick-Release Basket ｜Self-Centering Steering System｜ Built-in Rear Wheel Lock
Shopping | Short Commutes
City Tours | Alley Exploration
Leisure Rides | Picnic Trips
Electric Pedal-Assist City Commuter Bike
Designed for short urban trips and neighborhood errands.With a balanced blend of range, automatic shifting, and thoughtful features,Lily is lightweight, theft-resistant, safe, and easy to use and maintain.
Crafted by a Trusted MIT Brand
____________________________________________________________________________
Reliable after-sales support and long-term quality assurance
Specification
| Basic Information | |||
| Size / Rider Height | 24” / 150 cm and above | ||
| Type | E-Assist Bike (25 km/h) | ||
| Weight | 19.8 kg (including battery) | ||
| |
Frame | Aluminum alloy, internal cable, side battery |
| Safety Features | |||
|
Front Light
|
QD213-2 30lux | ||
| Brake System | PROMAX mechanical disc brakes | ||
| Brake Rotor | PROMAX 160mm |
| Drivetrain System | |||
| Front Fork | Lightweight aluminum alloy | ||
| Crankset | eTB-910-DH | ||
| Wheel Size | 24” | ||
| Tires | 24 x 1.75 | ||
| Rear Hub Gear | Shimano Nexus 2-speed internal gear hub | ||
| Freewheel | 14T |
| Electrical System | |||
| Display Panel | Black & white LED Speed / Gear / Trip / Battery (5-bar) |
||
| Power Assist Levels | 5-level adjustable pedal assist system | ||
| Motor | TRUCKRUN 36V 250W 14T, 39Nm rear hub motor |
||
| Battery | SEGL 36V / 5Ah / 180Wh | ||
| Charger | 36V / 2A | ||
| Charging Time | 3–4 hours | ||
| Estimated Range | Approx. 50 km (Distance varies with use.) | ||
| Special Features | Auto power-saving mode Walking assist function |
[ Thoughtfully Designed for Everyday Needs ]
Easy to learn, easy to ride — perfect for daily life
50 km Range & 3-Hour Fast Charging
______________________________________________________________________________________
Never worry about running out of power — perfect for city commutes and neighborhood rides.
2-Speed Automatic Gear Shifting
______________________________________________________________________________________
Automatically adjusts to speed and cadence for optimal efficiency and riding comfort.
Low Step-Through Frame
______________________________________________________________________________________
Easy to mount and ride — stress-free for every family member.
[ Convenient, Thoughtful Design for Everyday Ease ]
Fully equipped and road-ready
Quick-Release Shopping Basket
______________________________________________________________________________________
One-touch pop-up and lock system - makes everyday errands effortless.
Built-in Rear Wheel Lock
______________________________________________________________________________________
Integrated anti-theft design — lock up anytime, anywhere with ease.
Self-Centering Steering System
______________________________________________________________________________________
No more tipping or drifting — stable and secure when parked.
Front Light & Rear Reflector
______________________________________________________________________________________
Ride safely at night — no need for extra lights.
Bicycle Bell
______________________________________________________________________________________
Alert others clearly while riding.

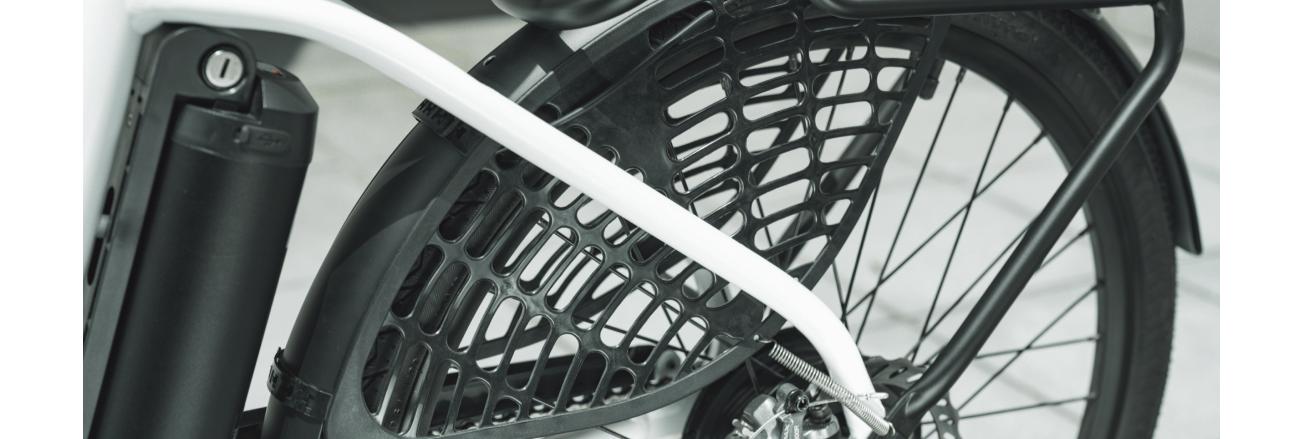

Skirt Guard
______________________________________________________________________________________
Protects skirts and loose clothing from the rear wheel.
|
We’ve Solved All Your Concerns!
|
||
| Worried about motorcycle safety and maintenance costs? | ||
| → E-bikes are safer and more affordable for short-distance commuting. |
| Not enough leg power? | ||
| → Electric assist makes riding easy — cruise up to 50 km effortlessly. |
| Battery life not enough? | ||
| → Fast-charging in 3 hours for a 50 km range — just plug in and go. |
| Too complicated to operate? | ||
| → One-button start and 2-speed auto shifting make it incredibly simple. |
| Hard to get on and off the bike? | ||
| → Low step-through frame and lightweight design — easy for anyone to ride. |
| Afraid of theft? | ||
| → Built-in rear wheel lock with one-touch operation keeps it secure. |
| Worried your shopping bags won’t fit? | ||
|
→ Large, quick-release front basket holds your groceries with ease.
→ Self-Centering Steering System keeps the bike steady even when fully loaded. |
| Concerned about battery safety? | ||
| → Certified and safety-tested by a trusted local manufacturer with full warranty and support. |
| Think e-bikes are too expensive? | ||
| → Great value among major brands, with 0% interest on 24-month installment plans during launch. |
| Product Specifications (EN) | ||
Basic Information |
Color | Warm Sun Yellow｜Moonlight White |
| Recommended Height | 24" / Recommended for 150 cm and above | |
| Type | Electric Assist Bicycle (Speed Limit 25km/h) | |
| Weight | 19.8 kg (including battery) | |
| Frame |
Lightweight aluminum alloy |
|
| Safety Design | Front Light | QD213-2, 30 LUX |
| Brake | PROMAX Mechanical Disc Brakes | |
| Brake Disc | PROMAX 160 mm | |
Suspension System Drivetrain System Steering System |
Front Fork | Lightweight aluminum alloy front fork |
| Chain | eTB-910-DHT | |
| Rim | 24” | |
| Tire | 24”x1.75 | |
| Rear Derailleur | Shimano Nexus 2-speed internal gear hub | |
| Freewheel | 14T | |
| Electronic Control Information | Dashboard | Black & white LED Displays speed, gear levels, mileage, battery level (5-bar indicator) |
| Gear Levels | Adjustable five-level electric assist output system | |
| Motor | TRUCKRUN 36V 250W 14T, 39Nm rear hub motor |
|
| Battery | SEGL 36V / 5Ah / 180Wh | |
| Charger | 36V 3A | |
| Charging Time0%-100% | 3-4 hours | |
| Maximum Range on a Full Charge | Approximately 50 km (Riding distance may vary based on actual conditions) |
|
| Special Features | Power-saving automatic shutdown feature Walk-assist mode |
|
The riding distance is for reference only. The data above is based on tests conducted with an 80 kg rider on flat ground at maximum speed. The total vehicle weight limit is 125 kg, with a rear rack weight limit of 18 kg. (Actual riding distance may vary depending on the rider's weight, road conditions, and environment.)
➤ Note 2:
For reference only. Specifications and equipment are based on the actual models sold in Taiwan. The company reserves the right to change or discontinue specifications and equipment.
➤ Note 3:
The company reserves the right to modify the product information published in the manual and on the website without prior notice (including equipment, specifications, weight, color, materials, etc.). Please refer to the actual product.
(1) DOSUN Product Repair Process +
1. Send the product to the original place of purchase.
2. Determine warranty status.
3. Provide a repair quote.
4. Wait for quote approval.
5. Proceed with the repair.
6. Return the repaired product.
2. Determine warranty status.
3. Provide a repair quote.
4. Wait for quote approval.
5. Proceed with the repair.
6. Return the repaired product.
(2) Repair Shipping Instructions +
1. Proof of Purchase:
Provide documentation such as a warranty card or purchase invoice to verify the warranty period. If such documents are not available, the product’s serial number will be used to determine the warranty status. However, the absence of a purchase document does not affect repair rights.
2. Brief Description of the Product Issue:
Include a note describing the product's issue. For example: "waterproof cover detached," "unable to open," or "unable to charge."
➤ Shipping Address for Lights:
No. 2, Zhonghua Lane, Shanying Road, Guishan District, Taoyuan City 33341 (Attn: Ms. Zhang, DOSUN Optoelectronics Sales Department)
➤ Service Hours:
Monday to Friday, 9:00 AM - 5:00 PM
➤ Service Phone:
03-3596066 ext. 168
Provide documentation such as a warranty card or purchase invoice to verify the warranty period. If such documents are not available, the product’s serial number will be used to determine the warranty status. However, the absence of a purchase document does not affect repair rights.
2. Brief Description of the Product Issue:
Include a note describing the product's issue. For example: "waterproof cover detached," "unable to open," or "unable to charge."
➤ Shipping Address for Lights:
No. 2, Zhonghua Lane, Shanying Road, Guishan District, Taoyuan City 33341 (Attn: Ms. Zhang, DOSUN Optoelectronics Sales Department)
➤ Service Hours:
Monday to Friday, 9:00 AM - 5:00 PM
➤ Service Phone:
03-3596066 ext. 168
